Simulator

The RTCU Simulator is a sophisticated, high-fidelity virtual environment that mirrors the functional behavior of the RTCU hardware. By providing a "digital twin" of the device on a PC, the platform allows for comprehensive testing and debugging of an application long before it is deployed to physical hardware.


Accelerated Development Workflow

The Simulator is seamlessly integrated into the RTCU M2M Studio workflow, enabling a highly iterative "Live-Coding" experience. VPL code can be modified in the editor while the simulation is running, allowing for immediate observation of the impact of any changes. This tight feedback loop drastically reduces development time and ensures a project reaches the field on schedule.


Modular Hardware Emulation

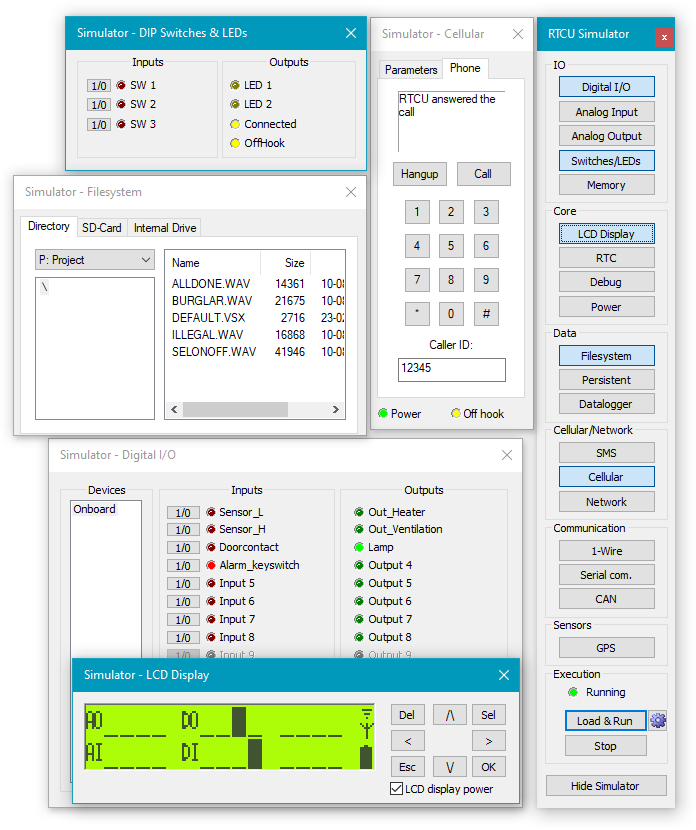

The Simulator provides a visual representation of the hardware through a series of dedicated windows, each corresponding to a specific subsystem of the RTCU device. To maintain a clean and focused workspace, the interface is fully customizable; only the modules relevant to the current project need to be enabled. For example, if an application does not require the LCD display or Analog I/O, those windows can be hidden to optimize the screen layout.

Key simulated components include:


•RTCU Simulator, Main window

•Digital I/O

•Analog Input

•Analog Output

•Switches & LEDs

•Memory IO

•LCD Display

•Real Time Clock

•Debug

•Power

•Filesystem

•Persistent Memory

•Datalogger

•SMS (Short Message Support)

•Cellular

•Network

•OneWire

•Serial

•CAN

•GPS

The RTCU Simulator operates as a virtualized NX32L-based environment. Because the NX32L architecture offers significantly greater resources than legacy platforms, certain hardware constraints inherent to X32 or NX32 devices—such as specific memory limitations—may not be reflected in the simulation exactly as they appear on physical hardware.

The Simulator requires that the project is built with Large String Support enabled.




Bridging the Gap: From Simulation to RTCU IEX

While the Simulator is an invaluable tool for logic validation, certain real-world complexities—such as precise hardware timing or intermittent field issues—require testing on physical hardware. When the limitations of a virtual environment are reached, the platform transitions seamlessly to the RTCU IEX (Instrumented Execution).

Representing a substantial technological leap in M2M/IoT development, RTCU IEX enables the transition from simulation to actual NX32L-based hardware while maintaining full diagnostic control. This provides accurate, real-world analysis that delivers insights beyond standard simulation.

By combining the RTCU Simulator for rapid prototyping and RTCU IEX with the Insight! tool for hardware-level precision, the platform offers a diagnostic suite built on over two decades of experience in mission-critical applications.

For more information on the RTCU IEX, please refer tot he RTCU Instrumented Execution (IEX) section.
