Configuration: Cellular Options

This dialog is used to configure the cellular parameters of the connected RTCU device.

Each page handles a different part of the configuration.

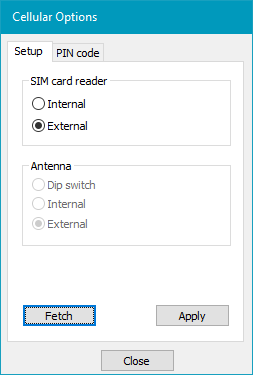

Setup page

SIM card reader

This option sets the selected SIM card reader on a device with multiple SIM card readers. This is the same as the VPL function gsmSelectSIM.

Antenna

This option sets the selected GSM antenna to use on a device with switchable antennas. This is the same as the VPL function gsmSetAntennaMode.

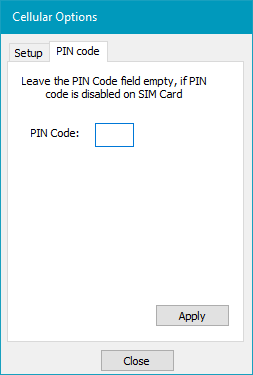

PIN code page

By using this page, it is possible to enter the PIN code that the RTCU device must use in order to activate the GSM module. If the PIN code is disabled on the SIM Card, the PIN code field must be blank. Please note that this dialog is just for entering the PIN code that has been assigned to the SIM Card. It is under no circumstances used for changing this code. This would have to be done from a cell phone or with the gsmSimSetPIN function. If the correct PIN code is not entered here, the RTCU device be unable to connect to the GSM network.
